Advanced Vehicle Security Screening for Safer Premises
This system ensures drivers and passengers remain outside the vehicle during scanning, making the process completely safe from radiation exposure. With its powerful 200KV or optional 320KV X-ray generator and high-resolution L-shaped detectors, TimeScan provides unmatched penetration and crystal-clear imaging.

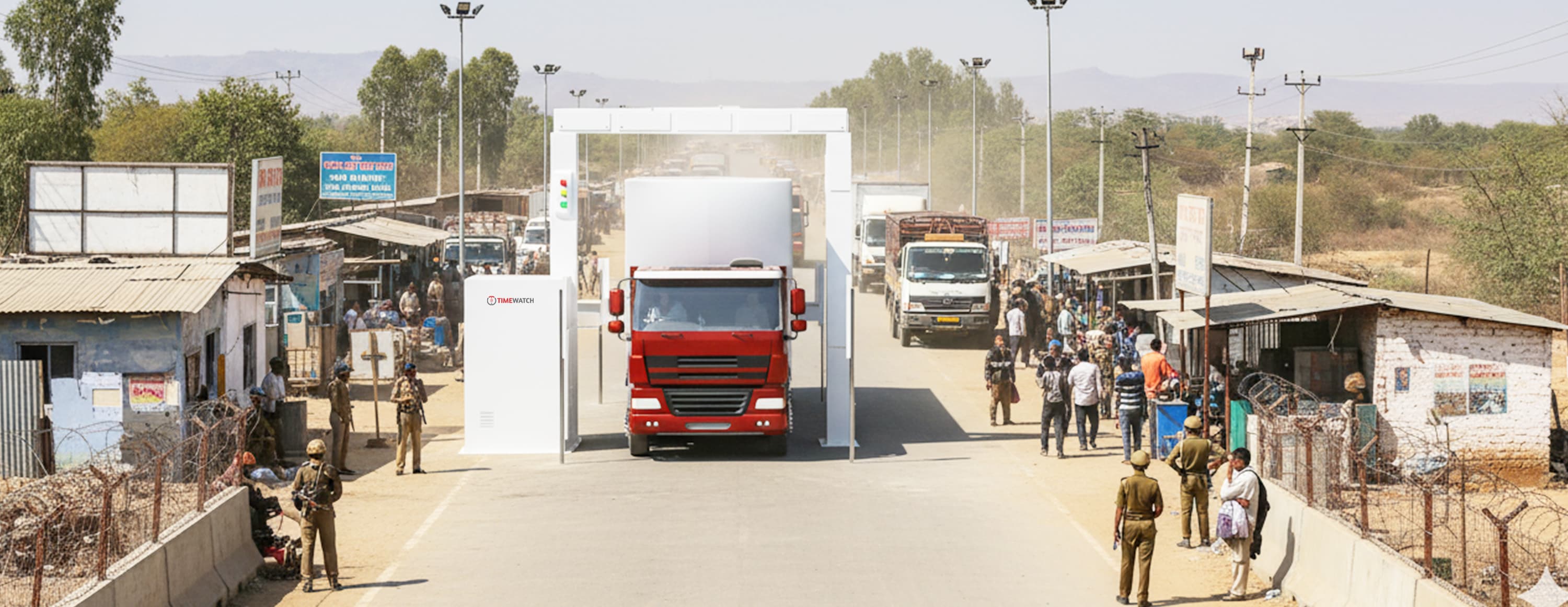

Whether installed at government buildings, metro and railway checkpoints, airports, customs, or event venues, TimeScan enhances security and prevents unauthorized items from slipping through.
Key Features of TimeScan

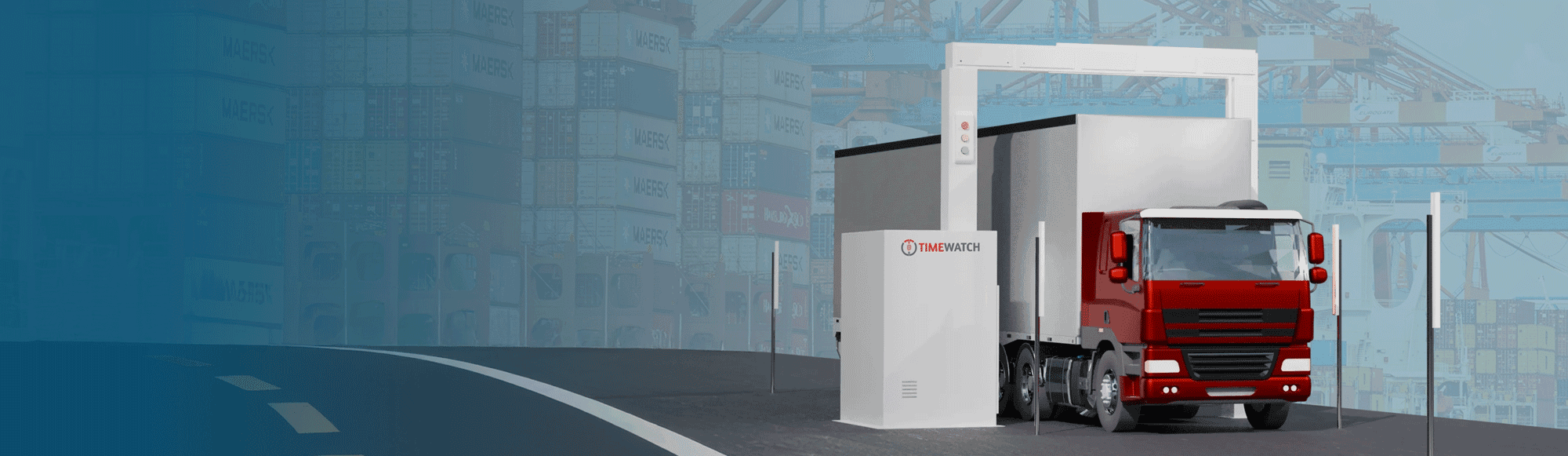

- Mobile Scanning System – The X-ray scanner moves automatically on rails, so vehicles don’t need to drive through, saving time and effort.
- Small Footprint Design – Requires minimal space with no heavy construction, making installation quick and cost-effective.
- Dual-Energy Imaging – Accurately differentiates between organic, inorganic, and metallic items, giving operators greater visibility.
- High Penetration Power – Detects up to 50 mm steel (200KV) or 70 mm steel (320KV), ensuring even dense materials can be scanned.
- Automatic License Plate Recognition (ALPR) – Seamlessly integrates with vehicle identification for high-traffic facilities.
- Powerful Imaging Functions – Zoom, reverse colors, strip organic/inorganic matter, brighten/darken, and local image enhancement to spot concealed threats.
- Safe & Compliant – Meets GB15208.0-2005 safety standards with minimal X-ray leakage and film safety guarantee.
Applications of TimeScan
- Government Buildings – Prevent unauthorized or dangerous goods from entering sensitive premises.
- Airports & Metro Stations – Secure entry points by scanning taxis, buses, and delivery vehicles.
- Customs & Border Checkpoints – Detect smuggling and contraband at state and international borders.
- Military Bases – Protect high-security facilities by identifying hidden weapons and explosives.
- Event Venues & Stadiums – Manage large crowds while keeping vehicles free from security risks.
- Corporate Campuses & SEZs – Monitor logistics and delivery vehicles entering workplace premises.
Technical Specifications
- Tunnel Size: 3m (W) x 3m (H) – customizable
- Scanning Speed: 0.2 m/s
- Steel Penetration: 50mm (200KV), 70mm (320KV)
- Resolution: Vertical 2mm / Horizontal 1.3mm
- Monitor: 24-inch HD LCD with lockable console
- Noise Level: <65 dB
- Operating Temp: 5°C–45°C
- Power: Max 4KVA
Why Choose TimeWatch TimeScan?
- Trusted by organizations across Delhi, Mumbai, Bangalore, Chennai, Kolkata, Hyderabad, and Ahmedabad.
- Deployed at critical sites in the UAE, Qatar, Saudi Arabia, and Africa.
- 24x7 support and nationwide presence for hassle-free operations.
